TRIPLEX

TRIPLEX Conventional Raw Edge Cogged (AX, BX, CX)
TRIPLEX Conventional Raw Edge Cogged Banded (BX, CX)
Raw Edge Cogged V-belt

TRIPLEX

Wear resistance

Higher frictional force

Reliable

Cost efficient

Readily available

Simple to replace

The TRIPLEX is the perfect choice for applications requiring smaller pulley diameters, offering a significantly increased frictional force compared to standard wrapped belts. With its raw-edge cogged design, it guarantees exceptional reliability and is widely employed in various mechanical power transmission sectors. Unlike wrapped V-belts, the Raw Edge V-belts boast a unique rubber compound that ensures superior wear resistance.

triplexcomposition

A Profile



B Profile



C Profile



Construction
Cover fabric Cotton
Adhesion rubber Chloroprene rubber
Cord Polysester
Compression rubber Chloroprene rubber
Characteristics
Heat resistance +90°C / +194°F
Cold resistance -40°C / -40°F
Max belt speed 30 m/s
Electric conductive Yes

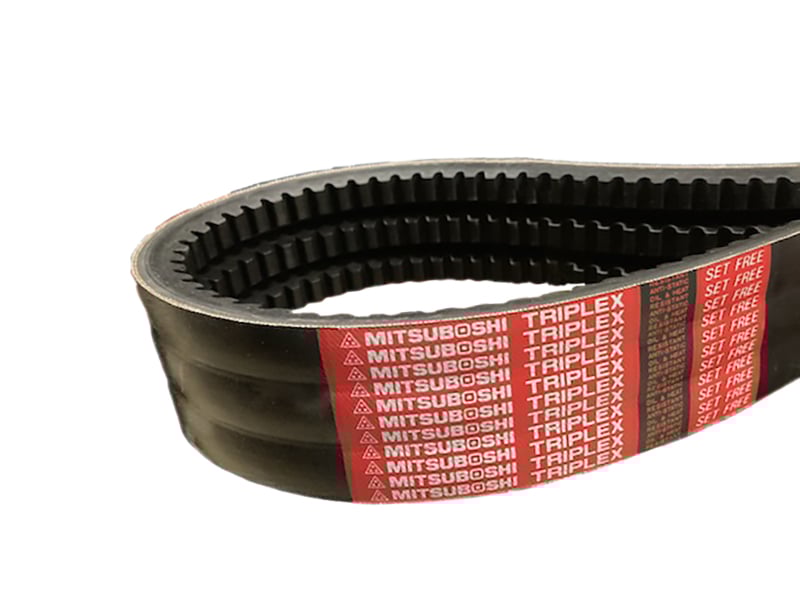

TRIPLEX Banded

TRIPLEX Rawedge Cogged Banded



Banded V-belts are available in 2, 3, 4, and 5 ribs. They may be used in match sets for drives requiring more than 5 belts.

conventionalbandedpitchB



conventionalbandedpitchC



Questions?

Please contact us to request more information about our product and how it can work with your application.

Design Manual

Offers a wealth of valuable guidance and detailed instructions on the properties and construction design of V-belts.
