Timing Belt G

image_timingbelt_mxl_1-1
image_timingbelt_g
Trapezoidal Tooth

Timing Belt G

Thin and lightweight

Low noise compared to chain

Cost efficient

Double-sided available

Superior flexibility

Extra small pitch type

Timing Belt G is a trapezoidal tooth timing belt that adheres to both ISO and JIS standards. It boasts exceptional versatility and accessibility, offering a wide range of tooth profiles and sizes. This product is known for its abundant options and ease of availability.

Construction
Rubber Chloroprene
Cord Glass Fiber
Tooth Fiber Nylon



Characteristics
Heat Resistance +90°C / +194°F
Cold resistance -30°C / -22°F
Max belt speed 30 m/s
Electric conductive Yes



timingbelt_g_pro_img-1

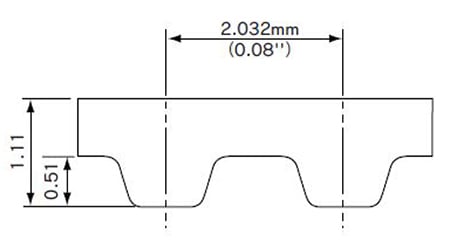

image_timingbelt_g_MXL-1

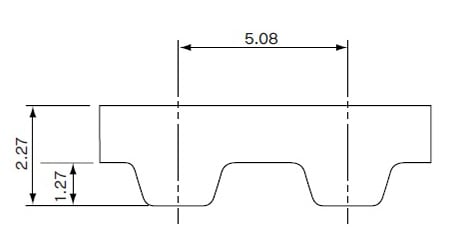

image_timingbelt_g_XL-1

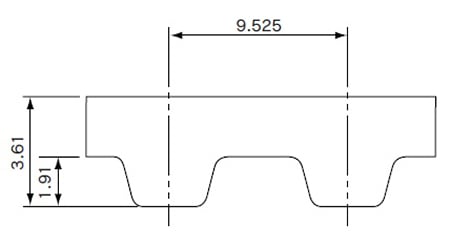

image_timingbelt_g_L-1



image_timingbelt_g_H-1

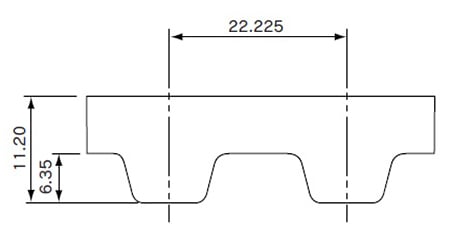

image_timingbelt_g_XH-1

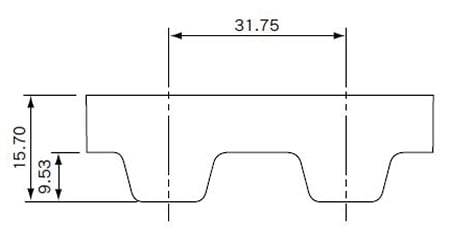

image_timingbelt_g_XXH-1
